德歐泰克 Diotec

Diotec 快速恢復整流器

適用於中頻整流，可降低切換損耗並提升電路效率。

Diotec 快速恢復整流器適用於中頻電路的整流需求，透過快速恢復特性降低切換過程中的功率損耗，提升電路運作效率。適用於工業設備、照明及電動載具等應用。





Product List
點我查看產品列表
表格可上下、左右捲動以查看完整資訊
Type
Package
Repetitive
Peak
Reverse
Voltage
Maximum
Average
Forward
Rectified
Current
Reverse
Recovery
Time
Junction
Temperature
Peak
Forward
Surge
Current
Forward
Voltage
Leakage
Current
Junction
Capacitance
VRRM[V]
IFAV[A]
trr[ns]
Tjmax[°C]
IFSM[A]
VF[V]
IF[A]
IR[µA]
VR[V]
Cj[pF]
VR[V]
BA157 Axial DO-41 400 1.00 300 150 35.00 1.30 1.00 5.000 400
BA158 Axial DO-41 600 1.00 300 150 35.00 1.30 1.00 5.000 600
BA159 Axial DO-41 1000 1.00 300 150 35.00 1.30 1.00 5.000 1000
BY296 Axial DO-201 100 2.00 500 150 70.00 1.30 3.00 5.000 100
BY297 Axial DO-201 200 2.00 500 150 70.00 1.30 3.00 5.000 200
BY298 Axial DO-201 400 2.00 500 150 70.00 1.30 3.00 5.000 400
BY299 Axial DO-201 800 2.00 500 150 70.00 1.30 3.00 5.000 800
BY396 Axial DO-201 100 3.00 500 150 100.00 1.20 3.00 5.000 100
BY397 Axial DO-201 200 3.00 500 150 100.00 1.20 3.00 5.000 200
BY398 Axial DO-201 400 3.00 500 150 100.00 1.20 3.00 5.000 400
BY399 Axial DO-201 800 3.00 500 150 100.00 1.20 3.00 5.000 800
MR820 Axial D8x7.5 50 5.00 300 150 300.00 1.20 5.00 10.000 50
MR821 Axial D8x7.5 100 5.00 300 150 300.00 1.20 5.00 10.000 100
MR822 Axial D8x7.5 200 5.00 300 150 300.00 1.20 5.00 10.000 200
MR824 Axial D8x7.5 400 5.00 300 150 300.00 1.20 5.00 10.000 400
MR826 Axial D8x7.5 600 5.00 300 150 300.00 1.20 5.00 10.000 600
MR828 Axial D8x7.5 800 5.00 300 150 300.00 1.20 5.00 10.000 800
1N4933 Axial DO-41 50 1.00 200 150 30.00 1.20 1.00 5.000 50
1N4934 Axial DO-41 100 1.00 200 150 30.00 1.20 1.00 5.000 100
1N4935 Axial DO-41 200 1.00 200 150 30.00 1.20 1.00 5.000 200
1N4936 Axial DO-41 400 1.00 200 150 30.00 1.20 1.00 5.000 400
1N4937 Axial DO-41 600 1.00 200 150 30.00 1.20 1.00 5.000 600
F1200A Axial D8x7.5 50 12.00 200 150 650.00 0.82 5.00 5.000 50
F1200B Axial D8x7.5 100 12.00 200 150 650.00 0.82 5.00 5.000 100
F1200D Axial D8x7.5 200 12.00 200 150 650.00 0.82 5.00 5.000 200
F1200G Axial D8x7.5 400 12.00 200 150 650.00 0.82 5.00 5.000 400
F5K120 Axial DO-201 120 5.00 350 175 180.00 0.99 5.00 5.000 120
RGP30K Axial DO-201 800 3.00 500 150 100.00 1.20 3.00 5.000 800
RGP30M Axial DO-201 1000 3.00 500 150 100.00 1.20 3.00 5.000 1000
1N4934R Axial DO-41 100 1.00 200 150 30.00 1.20 1.00 5.000 100
F11K120 Axial D5.4x7.5 120 11.00 350 150 250.00 0.97 5.00 5.000 120
F12K120 Axial D8x7.5 120 12.00 300 175 375.00 0.90 12.00 5.000 120
FX2000A Axial D8x7.5_LowRth 50 20.00 200 150 650.00 0.82 5.00 5.000 50
FX2000B Axial D8x7.5_LowRth 100 20.00 200 150 650.00 0.82 5.00 5.000 100
FX2000D Axial D8x7.5_LowRth 200 20.00 200 150 650.00 0.82 5.00 5.000 200
FX2000F Axial D8x7.5_LowRth 300 20.00 200 150 650.00 0.82 5.00 5.000 300
FX2000G Axial D8x7.5_LowRth 400 20.00 200 150 650.00 0.82 5.00 5.000 400
BY500-50 Axial D5.4x7.5 50 5.00 200 175 200.00 1.30 5.00 5.000 50
FX20K120 Axial D8x7.5_LowRth 120 20.00 300 175 650.00 0.94 20.00 5.000 120
FX20K150 Axial D8x7.5_LowRth 150 20.00 300 175 650.00 0.94 20.00 5.000 150
BY500-100 Axial D5.4x7.5 100 5.00 200 175 200.00 1.30 5.00 5.000 100
BY500-200 Axial D5.4x7.5 200 5.00 200 175 200.00 1.30 5.00 5.000 200
BY500-400 Axial D5.4x7.5 400 5.00 200 175 200.00 1.30 5.00 5.000 400
BY500-600 Axial D5.4x7.5 600 5.00 200 175 200.00 1.30 5.00 5.000 600
BY500-800 Axial D5.4x7.5 800 5.00 200 175 200.00 1.30 5.00 5.000 800
BY500-1000 Axial D5.4x7.5 1000 5.00 200 175 200.00 1.30 5.00 5.000 1000

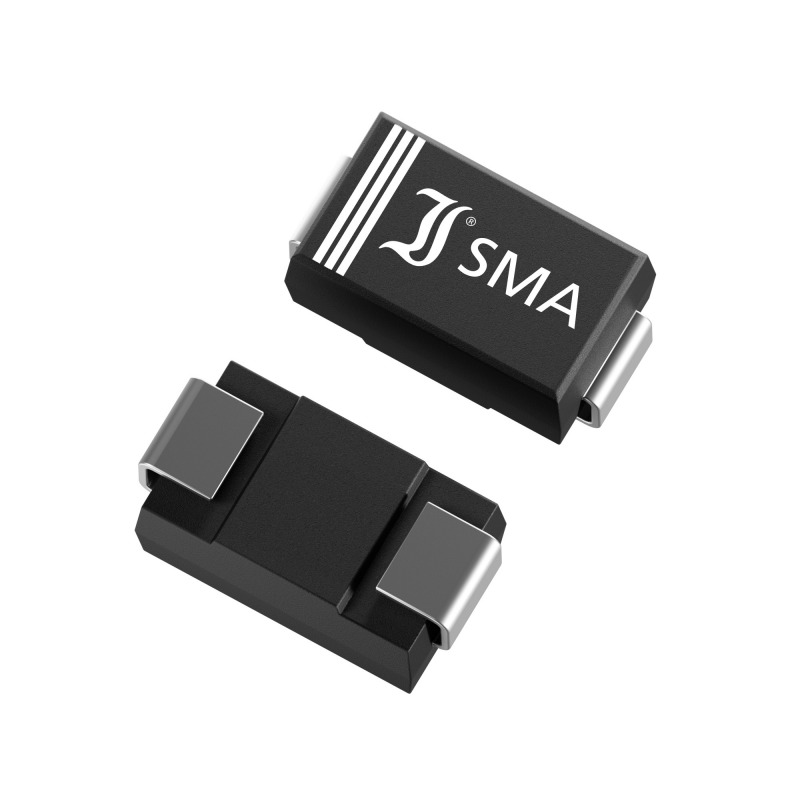

FR1A SMD DO-214AC/SMA 50 1.00 150 150 30.00 1.30 1.00 5.000 50
FR1B SMD DO-214AC/SMA 100 1.00 150 150 30.00 1.30 1.00 5.000 100
FR1D SMD DO-214AC/SMA 200 1.00 150 150 30.00 1.30 1.00 5.000 200
FR1G SMD DO-214AC/SMA 400 1.00 150 150 30.00 1.30 1.00 5.000 400
FR1J SMD DO-214AC/SMA 600 1.00 250 150 30.00 1.30 1.00 5.000 600
FR1K SMD DO-214AC/SMA 800 1.00 500 150 30.00 1.30 1.00 5.000 800
FR1M SMD DO-214AC/SMA 1000 1.00 500 150 30.00 1.30 1.00 5.000 1000
FR2A SMD DO-214AA/SMB 50 2.00 150 150 50.00 1.30 2.00 5.000 50
FR2B SMD DO-214AA/SMB 100 2.00 150 150 50.00 1.30 2.00 5.000 100
FR2D SMD DO-214AA/SMB 200 2.00 150 150 50.00 1.30 2.00 5.000 200
FR2G SMD DO-214AA/SMB 400 2.00 150 150 50.00 1.30 2.00 5.000 400
FR2J SMD DO-214AA/SMB 600 2.00 250 150 50.00 1.30 2.00 5.000 600
FR2K SMD DO-214AA/SMB 800 2.00 500 150 50.00 1.30 2.00 5.000 800
FR2M SMD DO-214AA/SMB 1000 2.00 500 150 50.00 1.30 2.00 5.000 1000
FR3A SMD DO-214AB/SMC 50 3.00 150 150 100.00 1.30 3.00 5.000 50
FR3B SMD DO-214AB/SMC 100 3.00 150 150 100.00 1.30 3.00 5.000 100
FR3D SMD DO-214AB/SMC 200 3.00 150 150 100.00 1.30 3.00 5.000 200
FR3G SMD DO-214AB/SMC 400 3.00 150 150 100.00 1.30 3.00 5.000 400
FR3J SMD DO-214AB/SMC 600 3.00 250 150 100.00 1.30 3.00 5.000 600
FR3K SMD DO-214AB/SMC 800 3.00 500 150 100.00 1.30 3.00 5.000 800
FR3M SMD DO-214AB/SMC 1000 3.00 500 150 100.00 1.30 3.00 5.000 1000
FRL1A SMD SOD-123FL 50 1.00 150 150 27.00 1.30 1.00 5.000 50
FRL1B SMD SOD-123FL 100 1.00 150 150 27.00 1.30 1.00 5.000 100
FRL1D SMD SOD-123FL 200 1.00 150 150 27.00 1.30 1.00 5.000 200
FRL1G SMD SOD-123FL 400 1.00 150 150 27.00 1.30 1.00 5.000 400
FRL1J SMD SOD-123FL 600 1.00 250 150 27.00 1.30 1.00 5.000 600
FRL1K SMD SOD-123FL 800 1.00 500 150 27.00 1.30 1.00 5.000 800
FRL1M SMD SOD-123FL 1000 1.00 500 150 27.00 1.30 1.00 5.000 1000
RAL1A SMD DO-213AA/MiniMelf 50 1.00 150 175 22.00 1.30 1.00 3.000 50
RAL1B SMD DO-213AA/MiniMelf 100 1.00 150 175 22.00 1.30 1.00 3.000 100
RAL1D SMD DO-213AA/MiniMelf 200 1.00 150 175 22.00 1.30 1.00 3.000 200
RAL1G SMD DO-213AA/MiniMelf 400 1.00 150 175 22.00 1.30 1.00 3.000 400
RAL1J SMD DO-213AA/MiniMelf 600 1.00 250 175 22.00 1.30 1.00 3.000 600
RAL1K SMD DO-213AA/MiniMelf 800 1.00 500 175 22.00 1.30 1.00 3.000 800
RAL1M SMD DO-213AA/MiniMelf 1000 1.00 500 175 22.00 1.30 1.00 3.000 1000
RGL1A SMD DO-213AA/MiniMelf 50 1.00 150 175 22.00 1.30 1.00 5.000 50
RGL1B SMD DO-213AA/MiniMelf 100 1.00 150 175 22.00 1.30 1.00 5.000 100
RGL1D SMD DO-213AA/MiniMelf 200 1.00 150 175 22.00 1.30 1.00 5.000 200
RGL1G SMD DO-213AA/MiniMelf 400 1.00 150 175 22.00 1.30 1.00 5.000 400
RGL1J SMD DO-213AA/MiniMelf 600 1.00 250 175 22.00 1.30 1.00 5.000 600
RGL1K SMD DO-213AA/MiniMelf 800 1.00 500 175 22.00 1.30 1.00 5.000 800
RGL1M SMD DO-213AA/MiniMelf 1000 1.00 500 175 22.00 1.30 1.00 5.000 1000
SA154 SMD DO-213AB/Melf 50 1.00 300 175 35.00 1.30 1.00 5.000 50
SA155 SMD DO-213AB/Melf 100 1.00 300 175 35.00 1.30 1.00 5.000 100
SA156 SMD DO-213AB/Melf 200 1.00 300 175 35.00 1.30 1.00 5.000 200
SA157 SMD DO-213AB/Melf 400 1.00 300 175 35.00 1.30 1.00 5.000 400
SA158 SMD DO-213AB/Melf 600 1.00 300 175 35.00 1.30 1.00 5.000 600
SA159 SMD DO-213AB/Melf 800 1.00 300 175 35.00 1.30 1.00 5.000 800
SA160 SMD DO-213AB/Melf 1000 1.00 300 175 35.00 1.30 1.00 5.000 1000
SA261 SMD DO-213AB/Melf 1200 2.00 500 175 45.00 1.80 2.00 5.000 1200
SA262 SMD DO-213AB/Melf 1400 2.00 500 175 45.00 1.80 2.00 5.000 1400
SA263 SMD DO-213AB/Melf 1600 2.00 500 175 45.00 1.80 2.00 5.000 1600
SA264 SMD DO-213AB/Melf 1800 2.00 500 175 45.00 1.80 2.00 5.000 1800
SA265 SMD DO-213AB/Melf 2000 2.00 500 175 45.00 1.80 2.00 5.000 2000
RGL34A SMD DO-213AA/MiniMelf 50 0.50 150 175 8.50 1.30 0.50 5.000 50
RGL34B SMD DO-213AA/MiniMelf 100 0.50 150 175 8.50 1.30 0.50 5.000 100
RGL34D SMD DO-213AA/MiniMelf 200 0.50 150 175 8.50 1.30 0.50 5.000 200
RGL34G SMD DO-213AA/MiniMelf 400 0.50 150 175 8.50 1.30 0.50 5.000 400
RGL34J SMD DO-213AA/MiniMelf 600 0.50 250 175 8.50 1.30 0.50 5.000 600
RGL34K SMD DO-213AA/MiniMelf 800 0.50 500 175 8.50 1.30 0.50 5.000 800
RGL34M SMD DO-213AA/MiniMelf 1000 0.50 500 175 8.50 1.30 0.50 5.000 1000
FR1G-AQ SMD DO-214AC/SMA 400 1.00 150 150 30.00 1.30 1.00 5.000 400
FR1J-AQ SMD DO-214AC/SMA 600 1.00 250 150 30.00 1.30 1.00 5.000 600
FR1M-AQ SMD DO-214AC/SMA 1000 1.00 500 150 30.00 1.30 1.00 5.000 1000 12 4
FR2TSMA SMD DO-214AC/SMA 1300 2.00 500 150 45.00 1.80 2.00 5.000 1300
FR2WSMA SMD DO-214AC/SMA 1600 2.00 500 150 45.00 1.80 2.00 5.000 1600
FR2XSMA SMD DO-214AC/SMA 1800 2.00 500 150 45.00 1.80 2.00 5.000 1800
FR2YSMA SMD DO-214AC/SMA 2000 2.00 500 150 45.00 1.80 2.00 5.000 2000
SA263R7 SMD DO-213AB/Melf 1600 2.00 500 175 45.00 1.80 2.00 5.000 1600
FR20DAD2 SMD TO-263AB/D2PAK 200 20.00 200 150 375.00 0.96 20.00 5.000 200
FR20DKD2 SMD TO-263AB/D2PAK 200 20.00 200 150 375.00 0.96 20.00 5.000 200
FR20DYD2 SMD TO-263AB/D2PAK 200 20.00 200 150 375.00 0.96 20.00 10.000 200
FR20GAD2 SMD TO-263AB/D2PAK 400 20.00 200 150 375.00 0.96 20.00 5.000 200
FRL1A-AQ SMD SOD-123FL 50 1.00 150 150 27.00 1.30 1.00 5.000 50
FRL1G-AQ SMD SOD-123FL 400 1.00 150 150 27.00 1.30 1.00 5.000 400
FRL1J-AQ SMD SOD-123FL 600 1.00 250 150 27.00 1.30 1.00 5.000 600
RGL1GR13 SMD DO-213AA/MiniMelf 400 1.00 150 175 22.00 1.30 1.00 5.000 400
RGL1JR13 SMD DO-213AA/MiniMelf 600 1.00 250 175 22.00 1.30 1.00 5.000 600
RGL1KR13 SMD DO-213AA/MiniMelf 800 1.00 500 175 22.00 1.30 1.00 5.000 800
RGL1MR13 SMD DO-213AA/MiniMelf 1000 1.00 500 175 22.00 1.30 1.00 5.000 1000
FT2000AA Wire-lead TO-220AC 50 20.00 200 150 350.00 0.96 20.00 5.000 50
FT2000AB Wire-lead TO-220AC 100 20.00 200 150 350.00 0.96 20.00 5.000 100
FT2000AD Wire-lead TO-220AC 200 20.00 200 150 350.00 0.96 20.00 5.000 200
FT2000AG Wire-lead TO-220AC 400 20.00 200 150 350.00 0.96 20.00 5.000 400
FT2000KA Wire-lead TO-220AC 50 20.00 200 150 350.00 0.96 20.00 5.000 50
FT2000KB Wire-lead TO-220AC 100 20.00 200 150 350.00 0.96 20.00 5.000 100
FT2000KD Wire-lead TO-220AC 200 20.00 200 150 350.00 0.96 20.00 5.000 200
FT2000KG Wire-lead TO-220AC 400 20.00 200 150 350.00 0.96 20.00 5.000 400
KT20A120 Wire-lead TO-220AC 120 20.00 300 175 350.00 0.98 20.00 5.000 120
KT20A150 Wire-lead TO-220AC 150 20.00 300 175 350.00 0.98 20.00 5.000 150
KT20K120 Wire-lead TO-220AC 120 20.00 300 175 350.00 0.98 20.00 5.000 120
KT20K150 Wire-lead TO-220AC 150 20.00 300 175 350.00 0.98 20.00 5.000 150
FT2000KB-Q Wire-lead TO-220AC 100 20.00 200 150 350.00 0.96 20.00 5.000 100

 *更多詳情請參考規格書
